704 / 703 / 702

Pinch Valves

704 / 703 / 702

Applications

Sludge, ore slurry, cement, powders, pulp, sewage sludge, etc.

Actuators

Pneumatic pressure type
704

704
○ Max. service pressure: 0.4Mpa
○ Piping flanges: JIS 10K
○ Production size: 25 A to 100 A
○ Actuator: Pneumatic pressure type

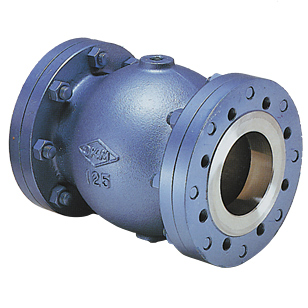

703

703
○ Max. service pressure: 0.3Mpa
○ Piping flanges: JIS 10K
○ Production size: 125A, 150A, 200A
○ Actuator: Pneumatic pressure type

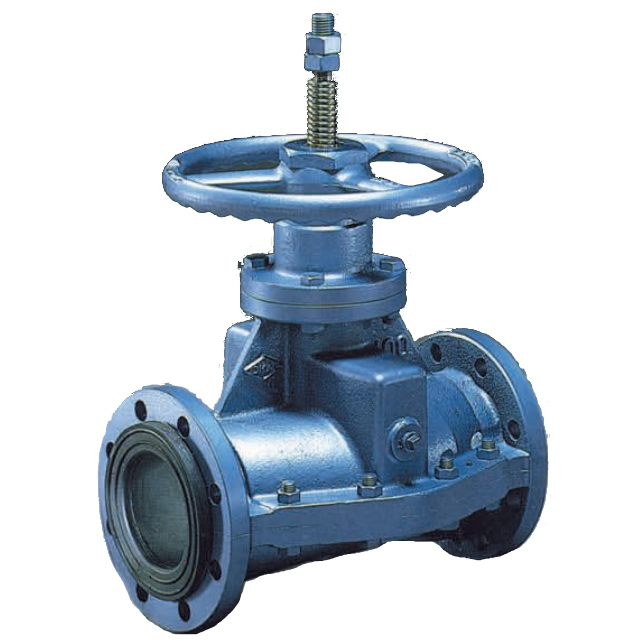

702

702
○ Max. service pressure: 0.5Mpa
○ Piping flanges: JIS10K
○ Production size: 25 A to 300 A
○ Actuator: Manual type

■Elastic special rubber sleeve for complete fluid control

■Valve opening/closing just by pressing on the special rubber sleeve

■Simple, compact straight-through slurry valve

■Ideal for sludge, ore slurry, cement, powders, pulp, sewage sludge, and other fluids thanks to a long service life and easy maintainability with zero pressure loss

■Complete shut-off even for fluids with interspersed solids
